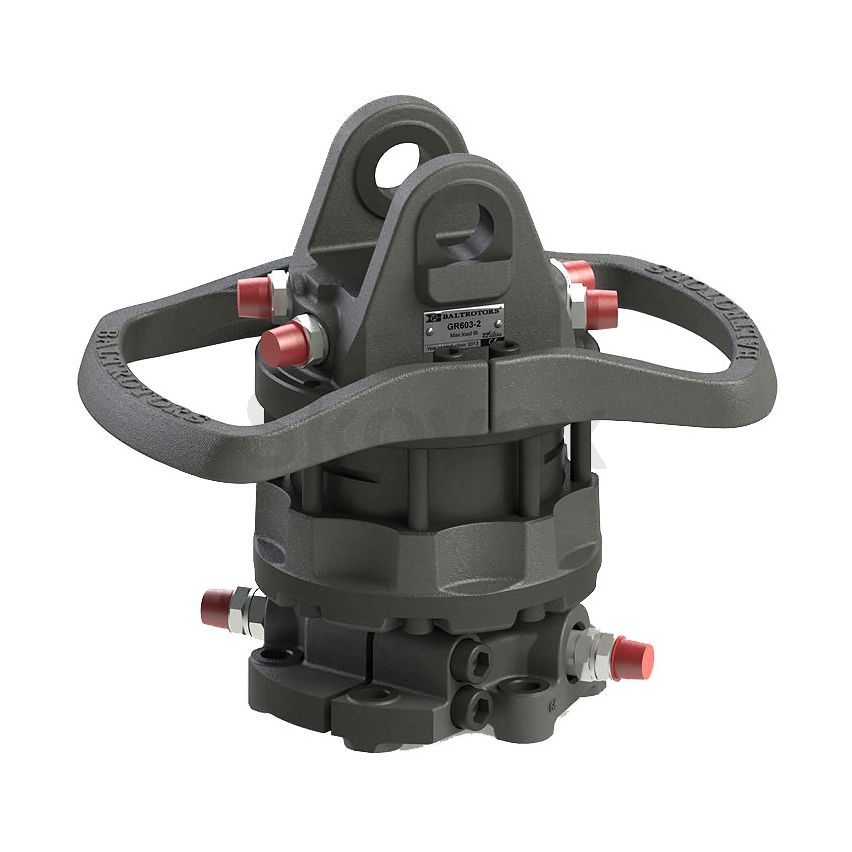

Rotaator Baltrotors GR623-2-2400Nm

Laoseis: 5
Tootekood:
GR623-2
DB--Dubble Bearing
Specifications - Grapple rotator
Benefits - Endless rotation
Application - Adaptable for nearly every type of loading crane
- Commercial vehicles
- Forestry
Properties - Axial load 1 to 16 tonnes
- Cheaper standard rotator
- Vane motor principle
- 2 oil feedthroughs for grabber open/closed
Technical information - GR = Grapple Rotator, only for axial loads
- GR-DB = Grapple Rotator Double Bearing, for both axial and radial loads

Connection (Inch) G 1/2"
Weight (kg) 43
Mounting (Bottom side) flange 6xø17, ø173mm
Q (l/min) 25
Attachment  80,5mm, hole 35mm
Oil connection 4
Limit of stresst (kN) 60
Torque (Nm) 1900
Lisainfo
EAN kood 106111
