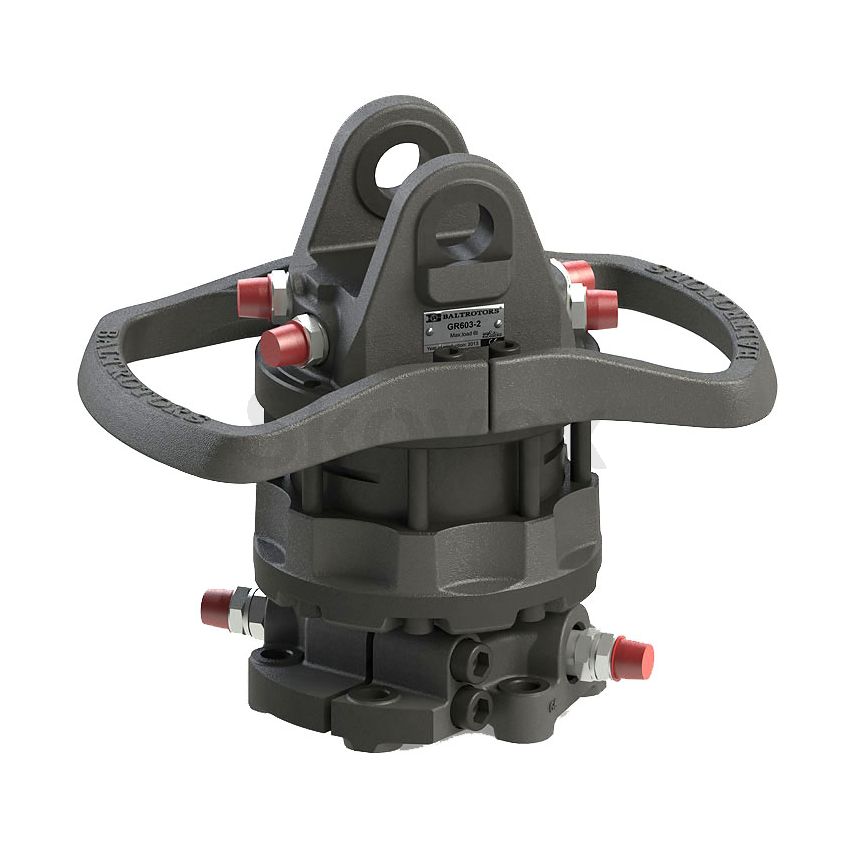

Ротатор GR623-2-2400Nm
На складе: 5
SKU
GR623-2
DB--Dubble Bearing
| Specifications | - Grapple rotator |
| Benefits | - Endless rotation |
| Application | - Adaptable for nearly every type of loading crane - Commercial vehicles - Forestry |
| Properties | - Axial load 1 to 16 tonnes - Cheaper standard rotator - Vane motor principle - 2 oil feedthroughs for grabber open/closed |
| Technical information | - GR = Grapple Rotator, only for axial loads - GR-DB = Grapple Rotator Double Bearing, for both axial and radial loads |
| Connection (Inch) | G 1/2" |
| Weight (kg) | 43 |
| Mounting (Bottom side) | flange 6xø17, ø173mm |
| Q (l/min) | 25 |
| Attachment | 80,5mm, hole 35mm |
| Oil connection | 4 |
| Limit of stresst (kN) | 60 |
| Torque (Nm) | 1900 |
| EAN kood | 106111 |
|---|
