TYRI 1010-HALOGEN-24V

На складе: 11
SKU
070466
Voltage: 12V (25W, 35W, 55W, 55W LL) 14.5V (50W) 24V (35W, 65W HD, 70W) 36V (55W) 48V (55W) Bulb: H3 Halogen Light Pattern: Symmetric Flood Asymmetric Flood High Beam Lens Material: Glass, Colored available Connectors: Compression seal w/ pigtail harness Built-in Deutsch connector (DT04-2P) Spade (1/4″ – 6.35mm)

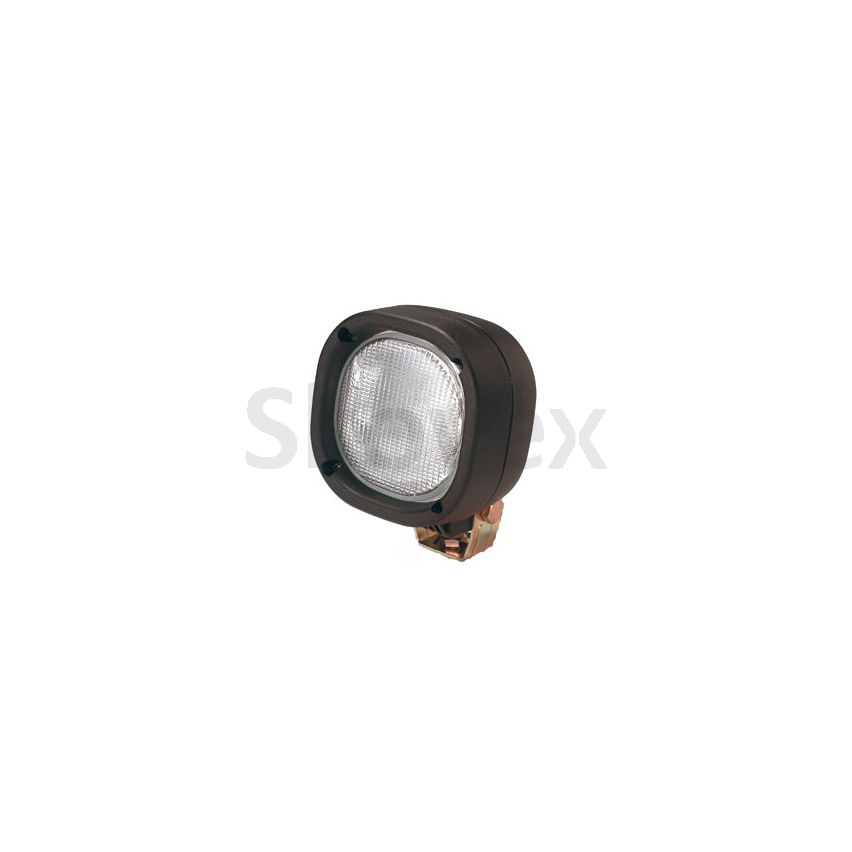

Tyri 1010

Whether as a fixed position general-purpose light or as an extreme service high vibration/high shock resistant light, the 1010 is configured to provide dependable long life performance.  Custom lens patterns can be developed for specific applications. The 1010 is used in a wide range of applications.  Applications include agricultural and construction equipment, fork lifts, forestry equipment, mining equipment, ground support equipment, utility vehicles, turf maintenance equipment, general purpose lighting, etc.

Features:

Bulbs

  • 12V H3 Halogen/25W 35W 55W
  • 24V H3 Halogen/65W HD 70W

Standard Lens

  • Asymmetric, Symmetric
  • Borosilicate Lenses
  • Custom lens can be developed

Special Lens Option

  • Lens can be coated to provide a higher light color temperature to match halogen light color to Xenon (HID) light color

Reflector

  • Multi-Parabolic
  • Diecast aluminum

Housing

  • Black Nylon (PA6)
  • Vibration dampened housing or standard undampened housing.

Bracket & Mounting Hardware

  • Zinc dichromate plated

Bracket Heights

  • 25mm, 30mm, 40mm

Mounting Options

  • Standing, hanging & side
  • Light adjustment range: 90°
  • Mounting bolts: M8, M10 or M12

Connectors

  • 3 Piece Seal w/pigtail harness (various connectors available)
  • Built-in Deutsch connector (DT04-2P)
  • Grommet
  • Spade (1/4 inch-6.35mm)



Light Patterns
Asymmetrical Symmetrical

DMK lights are available with dampened or undampened brackets in three different heights; 25mm, 30mm or 40mm. Dampened brackets are recommended for off-road uses or in environments where the light may be subjected to excessive vibration. Brackets are also available in three mounting bolt sizes; M8, M10 or M12. Please call our knowledgeable support staff at 715-344-8600 to discuss your specific needs.

Спецификации
EAN kood CD-216-2
