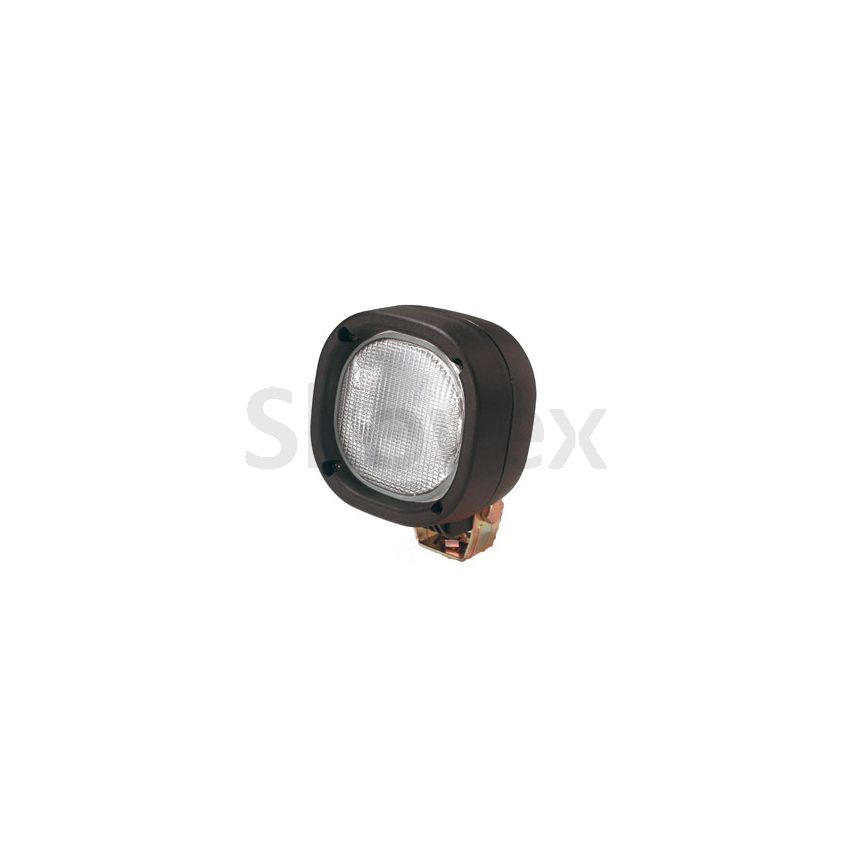

TYRI 1010 Asym.Halogen 24V
Voltage:
12V (25W, 35W, 55W, 55W LL)
14.5V (50W)
24V (35W, 65W HD, 70W)
36V (55W)
48V (55W)
Bulb:
H3 Halogen
Light Pattern:
Symmetric Flood
Asymmetric Flood
High Beam
Lens Material:
Glass, Colored available
Connectors:
Compression seal w/ pigtail harness
Built-in Deutsch connector (DT04-2P)
Spade (1/4″ – 6.35mm)
|
Tyri 1010
|
|
Whether as a fixed position general-purpose light or as an extreme service high vibration/high shock resistant light, the 1010 is configured to provide dependable long life performance. Custom lens patterns can be developed for specific applications. The 1010 is used in a wide range of applications. Applications include agricultural and construction equipment, fork lifts, forestry equipment, mining equipment, ground support equipment, utility vehicles, turf maintenance equipment, general purpose lighting, etc.
|
|
| Features:
Bulbs
- 12V H3 Halogen/25W 35W 55W
- 24V H3 Halogen/65W HD 70W
Standard Lens
- Asymmetric, Symmetric
- Borosilicate Lenses
- Custom lens can be developed
Special Lens Option
- Lens can be coated to provide a higher light color temperature to match halogen light color to Xenon (HID) light color
Reflector
- Multi-Parabolic
- Diecast aluminum
Housing
- Black Nylon (PA6)
- Vibration dampened housing or standard undampened housing.
Bracket & Mounting Hardware
Bracket Heights
Mounting Options
- Standing, hanging & side
- Light adjustment range: 90°
- Mounting bolts: M8, M10 or M12
Connectors
- 3 Piece Seal w/pigtail harness (various connectors available)
- Built-in Deutsch connector (DT04-2P)
- Grommet
- Spade (1/4 inch-6.35mm)
|
|

|
|

|
|

|
| Light Patterns |
| Asymmetrical |
Symmetrical |
 |
 |
|
|

|
|
DMK lights are available with dampened or undampened brackets in three different heights; 25mm, 30mm or 40mm. Dampened brackets are recommended for off-road uses or in environments where the light may be subjected to excessive vibration. Brackets are also available in three mounting bolt sizes; M8, M10 or M12. Please call our knowledgeable support staff at 715-344-8600 to discuss your specific needs.
|
More Information
| EAN kood |
CD-216-2 |
